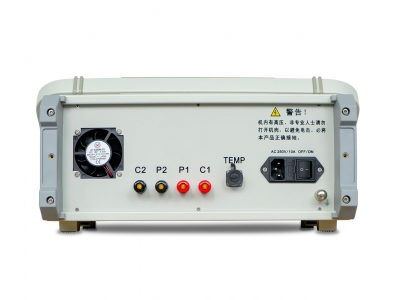

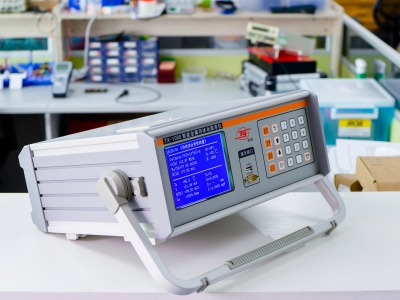

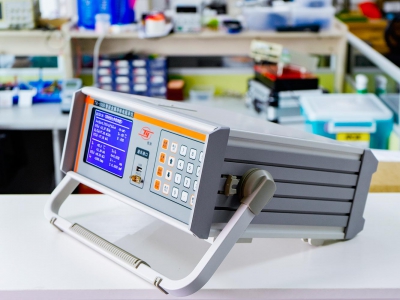

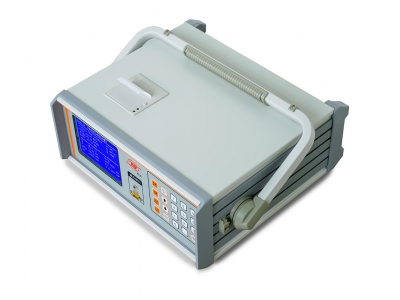

TX-1000A intelligent metal wire resistivity meter is a high-resolution and high-precision desktop model based on tx-300 series intelligent resistivity meter, which can be used for measuring the resistivity and conductivity of metal wire, bar and other materials, and for measuring the resistance and meter resistance of stranded wires and cables.
Ø It is used to measure the resistance, meter resistance, kilometer resistance, DC resistance of motor, transformer and so on of 1-45mm stranded wire and multi strand cable.
Ø The resolution of the instrument is as high as 10-8 Ω (0.01 μ Ω), which ensures the measurement accuracy of the resistance and conductivity of the metal wire with the diameter as high as Ø 45mm (cross-sectional area as high as 1589mm²).
Ø Equipped with high-precision (± 0.1 ℃) temperature sensor or test fixture with high-precision conductor temperature sensor, the accuracy of automatic temperature compensation in measurement is greatly improved.
Ø It integrates advanced electronic technology, single-chip technology and automatic detection technology, with strong automatic function and simple operation.
Ø Press the key only once, all the measured values can be obtained, without any calculation, suitable for continuous, fast and accurate detection.
Ø AC and battery powered design, suitable for field and field use.
Ø Large screen, large font, which can display the meter resistance, kilometer resistance and other measurement values and temperature, test current, temperature compensation coefficient and other auxiliary parameters at the same time, very intuitive.
Ø Each measurement has the function of automatically selecting the constant current, automatically reversing the current, automatically correcting the zero point, overcoming the error caused by the resistance from the thermal voltage to the line, and ensuring the accuracy of each measurement.
Ø It can adapt to all standard 1 meter test fixtures or non 1 meter test fixtures, and is very flexible to use.
Ø It can be equipped with a series of calibration resistors and related software to facilitate the automatic calibration of the instrument.
Ø It has built-in data memory, which can record and save 1000 groups of measurement data and parameters, and connect the upper computer to generate a complete report.
Parameter Item | Resistivity | Conductivity | Resistance |
Measuring range | 0.01µΩ·m～2.5µΩ·m | 0.4MS/m～100MS/m 0.69%IACS～172%IACS | 0.1µΩ～150Ω |
Resolution | 10－4～10－6µΩ·m | 0.01～0.001%IACS | 0.01µΩ（I=10A） |
Precision | ±0.25% | ±0.25% | 100µΩ～150Ω：±0.15% |
Temperature measurement | 0℃-55℃，Accuracy of ±0.1℃ | ||
Internal constant current of the instrument | 16µA level～10A level（automatic selection according to the measuring requirement） | ||
Wire/cable measuring fixture | privided 1000mm standard test fixture (Optional TXJ-300 / 150 / 240 / 630 / 1200 test fixture )or other non-standard test fixture with differernt size; | ||
Automatic temperature compensation | The measured value will be automatically compensated to the value at 20℃. | ||
Wire/cable measuring items | ①Soild conductor resistivity ρv,conductivity σ, resistance R,resistance per unit lengh Rl，② resistivity, resistance pen unit leagh(Ω/m),Ω/km(typeB)
| ||
Printout data | Date, time, temperature correction coefficient α, wire specifications, and all measured values of conductor and wire/cable | ||
Normal working environment | Temperature: 0℃～＋40℃; relative humidity: 0～80% | ||
Display | large screen LCD，which can simultaneously display multiple measurement parameters with backlight | ||
Power supply | 220VAC ± 10%, 50-60Hz; power 160W | ||
Internal memory | Can save 1000 groups of measured data. | ||
PC communication mode | RS232 serial port | ||
Host size | 350(W)*260(H)*200(D) | ||
Master machine shell | Aluminum alloy case | ||
Packaging and protection | Master machine,test fixture,charge,communication cables,correction resistance,operation manual and a CD-ROM,Flush bonading printer,charger four-terminal resistance test clamp,temperature sensor ,and etc. | ||
● measurement of electrical conductivity of wires and cables
● measurement of electrical conductivity of bar, pipe and profile metal
● research on metal materials
● material sorting in production workshop
TECHNICAL SUPPORT 1 ：86-592-3195306 / 86-18050108768
TECHNICAL SUPPORT 2：86-592-3195308 / 86-18060926989
The primary indexes comparing of
TX-300/1000 Series’ Metal Conductor Resistivity Measuring Instrument
The instrument decides the maximum measuring diameter, measuring project, resolution, optional fixture. Nevertheless, how long the diameter of line of material be clamped and which type of material apply, is decided by the fixture.
Comparison table of instrument:
Value Project | Resistance | Resolution | Measuring project | Optional fixture |
TX-300A | 0.1µΩ ～150Ω | 0.1µΩ（I=1A） | Resistivity, conductivity, resistance, resistance per unit length ( resistance per meter), mass resistivity | TXJ-300 |
TX-300B | 0.1µΩ ～150Ω | 0.1µΩ（I=1A） | Resistivity, conductivity, resistance, resistance per unit length ( resistance per meter), mass resistivity, resistance per kilometer | TXJ-300 TXJ-150 TXJ-240 |
TX-1000A
| 0.01µΩ ～150Ω | 0.01µΩ（I=10A） | Resistivity, conductivity, resistance, resistance per unit length ( resistance per meter) | Except TXJ-300 |
TX-1000B
| 0.01µΩ ～150Ω | 0.01µΩ（I=10A） | Resistance, resistance per unit length ( resistance per meter), resistance per kilometer | Except TXJ-300 |

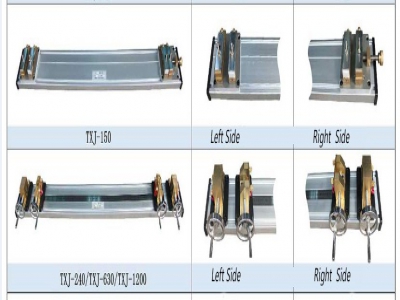

Comparison table of fixture:
Value Project | Length of fixture | Measuring project |
TXJ-300 | 300mm | diameter of line is 0.1mm to 10mm measurable materials are wire and bar maximum sectional area is 100mm² |
TXJ-150 | 1000mm (Clamping length can be adjusted: 300-1000mm) | diameter of line is 1mm to 14mm measurable materials are wire and bar maximum sectional area is 150mm² |
TXJ-240 | diameter of line is 1mm to 18mm measurable materials are wire, bar and strand wire maximum sectional area is 240mm² | |
TXJ-630 | diameter of line is 1mm to 28mm measurable materials are wire, bar and strand wire maximum sectional area is 630mm² | |
TXJ-1200 | diameter of line is 1mm to 39mm measurable materials are wire, bar and strand wire maximum sectional area is 1200mm² | |
TXJ-1500B | diameter of line is 1mm to 44mm measurable materials are wire, bar and strand wire maximum sectional area is 1500mm² with high precision temperature sensor | |
TXJ-1500B1 | diameter of line is 1mm to 44mm measurable materials are wire, bar and strand wire maximum sectional area is 1500mm² with several high precision temperature sensors and conductor thermal insulation system |
Brief description:
TX-300A: Equipped with default 300mm measuring fixture, measuring the material whose diameter of line is between 0.1mm to 10mm, easy to carry, suitable for indoor and open-field use.
TX-300A: Selecting 300mm measuring fixture or normal one meter measuring fixture, TX-300A compared to one more measuring project to measure resistance per kilometer
TX-1000A：Select from all the one meter measuring fixtures, the measured material’s maximum diameter is 44mm. Compared with the 300series, 1000 series’ measurement range is wider, resolution is higher, and the measurement minimum is 0.01μΩ. Extra 1000A2/B/B1 model fixtures can be selected, and it can measure 1-44mm material.
TX-1000B：Select from all the one meter measuring fixtures. Compared with the 1000A model, it has the same basic performance, removes the resistivity and conductivity from the measuring project but adds resistance per kilometer, be more suited to measure strand wire.
