● It is used to measure the conductivity, resistivity, meter resistance of metal foil, metal strip and wire, and DC resistance of motor, transformer, etc.

● It integrates advanced electronic technology, single-chip technology and automatic detection technology, with strong automatic function and simple operation;

● only press the key once, all measured values can be obtained without any calculation, suitable for continuous, fast and accurate detection;

● battery powered design, small size, easy to carry, suitable for field and field use;

● large screen, large font, which can display resistivity, conductivity, resistance and other measured values and temperature at the same time, test current, temperature compensation coefficient and other auxiliary parameters, very intuitive;

● one machine is multi-purpose, with three kinds of measuring interfaces, i.e. conductor resistivity, conductivity measurement interface, and metal foil resistivity measurement interface;

● each measurement, with automatic selection of constant current, automatic current commutation, automatic zero correction, to overcome the error caused by the thermal voltage to line resistance, and ensure the accuracy of each measurement value;

● the instrument has its own environmental temperature sensor and a variety of material temperature coefficients for selection to complete the automatic temperature compensation;

● a series of calibration resistors can be selected and matched with relevant software to facilitate the automatic calibration of the instrument;

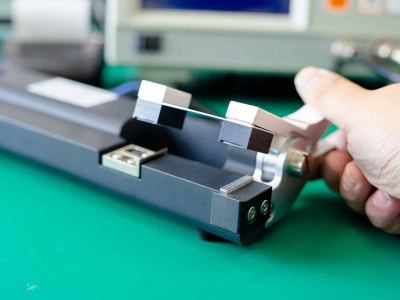

● The unique portable four terminal test fixture is suitable for rapid measurement of different materials and specifications of wire or bar;

● the built-in data memory can record and save 1000 sets of measurement data and parameters, and connect the upper computer to generate a complete report.

Parameter Item	Resistivity	Conductivity	Resistance
Measuring range	0.01µΩ·m～2.5µΩ·m	0.4MS/m～100MS/m 0.69%IACS～172%IACS	0.1µΩ～150Ω
Resolution	10－4～10－6µΩ·m	0.01～0.001%IACS	0.1µΩ（I=1A）
Precision	±0.25%	±0.25%	100µΩ～150Ω：±0.15%
Temperature measurement	－10℃～＋55℃     Precision ±0.2℃(0℃～＋40℃)
Internal constant current of the instrument	16µA level～1A level（automatic selection according to the measuring requirement）

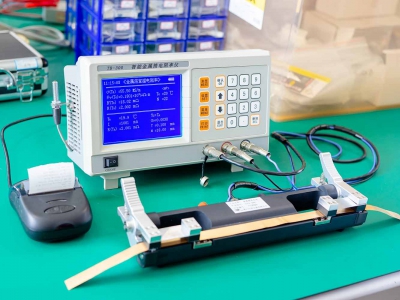

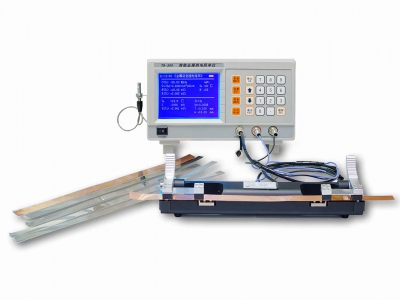

measuring fixture	with TBJ-300(300mm)portable testing fixture measure strip-type metal foil and thin metal belt
Automatic temperature compensation	The measured value will be automatically compensated to the value at 20℃.
measuring items	room temperature DC resistance at stadard size R’（T0）、resistivity ρv、room temperature resistance  R（T0）、resistance R
Printout data	Date, time, temperature correction coefficient α and various measurements values of metal foil
Normal working environment	Temperature: 0℃～＋40℃;  relative humidity: 0～80%

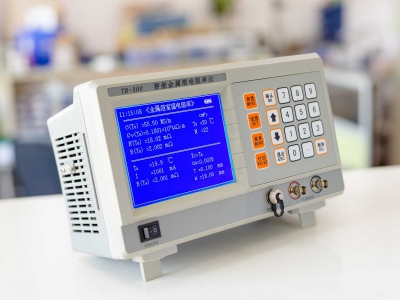

Display	Large LCD screen with backlight, can display multiple measuring parameters at the same time.
Power supply	7Ah/7.4V chargeable lithium battery; battery power supply only, average working hour over 15 hours
Internal memory	Can save 1000 groups of measured data.
PC communication mode	RS232 serial port
Weight	Host：2.2kg     Portable measuring fixture：1kg
Host size	285(W)*158(H)*120(D)
Host shell	Shock-resistance engineering plastic

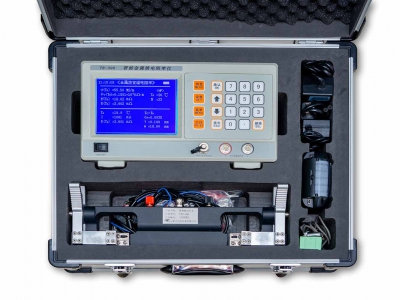

Packaging and protection	containing the host, measuring fixture, charger, communication cable, calibration resistor, operation manual and mini-printer.



It is used to measure the conductivity, resistivity, meter resistance of metal foil, metal strip and wire, and DC resistance of motor, transformer, etc
